Stainless Steel Railings

Stainless steel for durability and design

Key Features

  • Welded and mechanical systems
  • Aluminum and stainless steel construction
  • Stainless steel tension cable designs
  • Interior and exterior applications
  • Anodized, Kynar or powder coated finishes

View Project Gallery

Stainless steel cable railings offered by Awning Works Inc. are fabricated with stainless steel cable and fitting components, all made in the USA. Cable railings are strong but lightweight and are a perfect choice for someone wanting to add a little flair while still providing the necessary safety compliance. Stainless steel by nature is considered a green material and more and more architects are beginning to specify cable railing systems in an effort to choose more environmentally conscious alternatives to traditional wood or steel systems.

Our entire line of handrail systems are designed with aluminum and stainless steel construction and can either be welded or mechanical assembled. We have many different attachment options and a wide variety of finishes including anodized, Kynar, or powder coat in an array of colors.


  • The cable infill system is a 3/16" diameter 1"×19" cable with stud adjusters at each end for tensioning
  • Attachment options include either a 4"×4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed

Our FB1-2000 handrail system is an all stainless steel design that consist of vertical post every 4'-0" o.c. The post are manufactured from (2) 1/2"×1-1/2" flat bars and then connected to each other by a welded tube that is 1/2" in diameter and 1-1/2" inches long. The top cap is manufactured form 1-1/2" diameter tubing. This system is available in both 36" high and 42" high railing.

railing


  • The cable infill system is a 3/16" diameter 1"×19" cable with stud adjusters at each end for tensioning
  • Attachment options include either a 4"×4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed

Our FB3-2000 handrail system is an all stainless steel design that consist of vertical post every 4'-0" o.c. The post are manufactured from (2) 1/2"×1-1/2" flat bars and then connected to each other by a welded tab. The top cap is manufactured form 1-1/2" diameter tubing. This system is available in both 36" high or 42" high railing.

railing


  • The cable infill system is a 3/16" diameter 1"×19" cable with stud adjusters at each end for tensioning
  • Attachment options include either a 4"×4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed

Our SP1-2000 handrail system is an all stainless steel design that consist of vertical post every 4'-0" o.c. The post are manufactured from 1-1/2" square tube. The top cap is manufactured form 1-1/2" diameter tube. This system is available in both 36" high and 42" high railing.

railing


  • The cable infill system is a 1/8" diameter 1"×19" cable with a decorative button head fitting at the upper end and a stud adjuster at the lower end for tensioning.
  • Attachment options include either a 4"×4" surface mounted base plate, core drill or fascia mount
  • Available in type 304 and 316 stainless steel
  • Standard finish is a #3 brushed

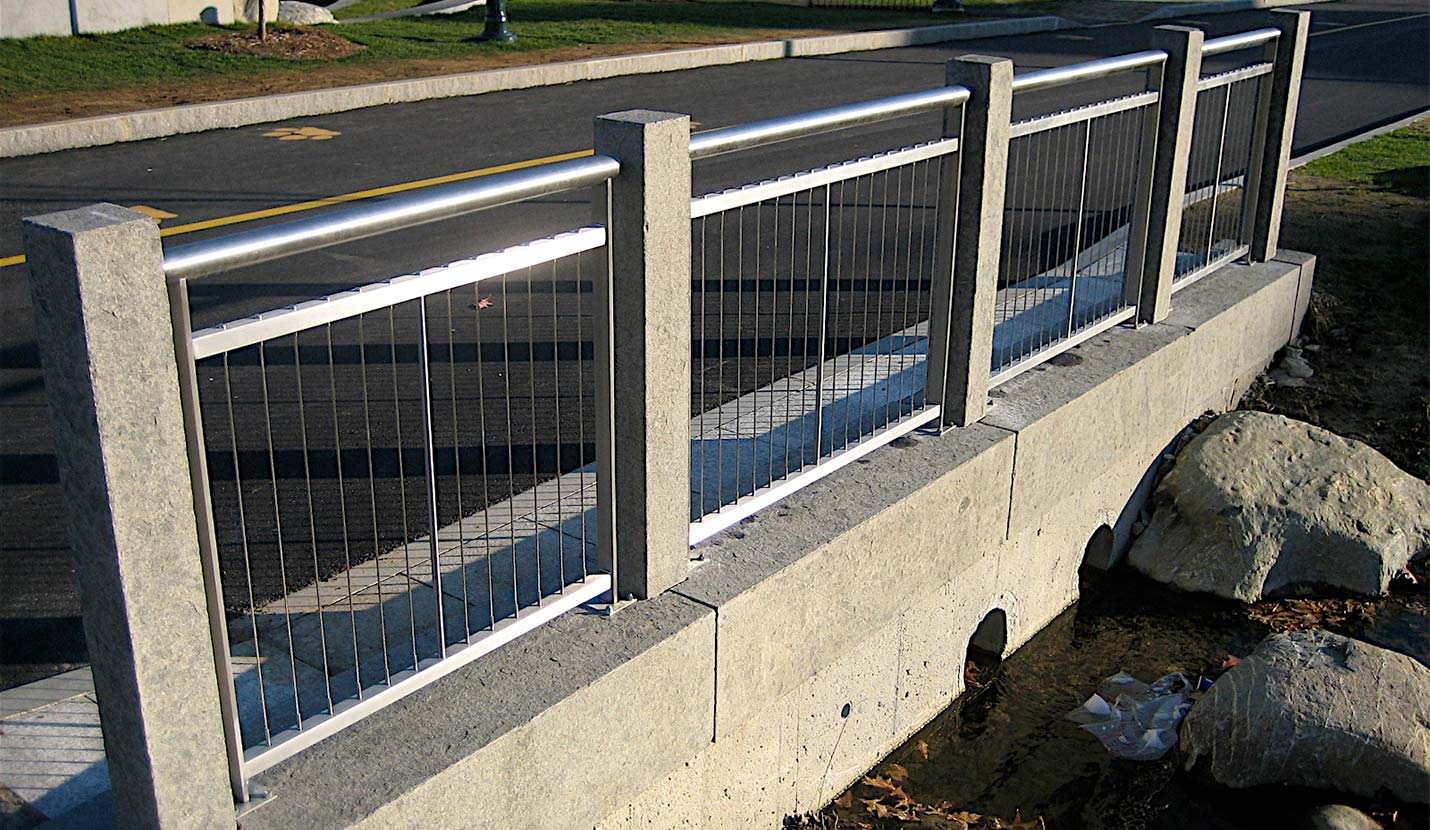

Our VC1-2000 handrail system is an all stainless steel vertical cable railing system. The vertical post are manufactured from 3/4"×2" flat bar and the horizontal members are manufactured from a 1-1/2" square tube. The top cap is manufactured from a 2" diameter tube. This system is available in both 36" high or 42" high railing.

railing

Railings Project Gallery
